Western Decorating Technologies
|
|
|
|
DIGITAL CYLINDER PRINTER
 |

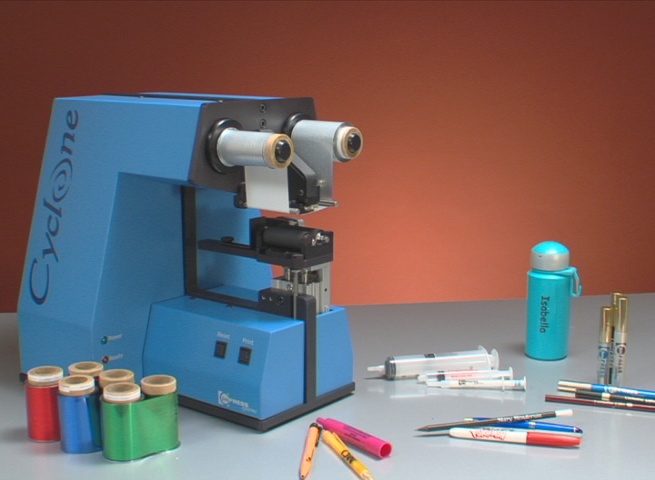

Cyclone is a compact, desk-top printer that replaces the traditional hot stamping, silk screening, and pad printing processes currently used to print and decorate cylindrical items, including pens, markers, cosmetic packaging, e.g., lipstick and eyeliner pencils, and flashlights, as well as industrial applications.
|
Cyclone significantly reduces the direct and indirect costs of printing by eliminating costly set up time, as well as the dies, screens, inks, and solvents used in traditional printing methods. The system is cost effective for long, short, and personalized runs and applies any computer-generated text and graphics - instantly. Versatile, quiet, and environmentally friendly, Cyclone is safe, easy-to-use, and produces sharp, durable impressions on demand.
|

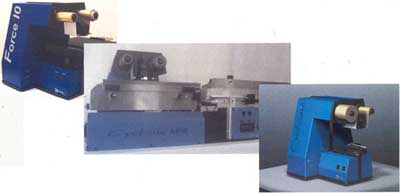

 APS...AUTOMATED PEN/PENCIL SYSTEM
|
|
|
Cyclone Specifications
 Dimensions: 13" (330 mm) W x 14.75" (380 mm) H x 13.5" (340 mm) D
Weight: 29 lbs. (13 kg)
Print Resolution: 300 dpi
Print Substrates: Cylinders (most plastics; surface must be smooth & free of defects)
Cylinder Diameter: .25 (6 mm) to 1" (25 mm)
Print Width: 2.1" (53.2 mm)
Print Length: Variable based on circumference of cylinder
Print Speed: User selectable - up to 2 in/sec (50 mm/sec)
Operating System: Windows 98
Printer Driver: ImPress Systems Custom Printer Driver
Software Compatibility: Microsoft Windows 95, 98 applications
I/O Interface: IEEE 1284 - Centronix Parallel; and Universal Serial Bus (Windows 98)
Power Requirements:
 Input Voltage: 100 - 125V AC; 220 - 240V AC; Line Frequency 50/60Hz
External Air Source Clean, dry house air - Inlet pressure 70 - 120 psig
|
|
|
|
|
|
|
|
|
|
|
|
|
|
